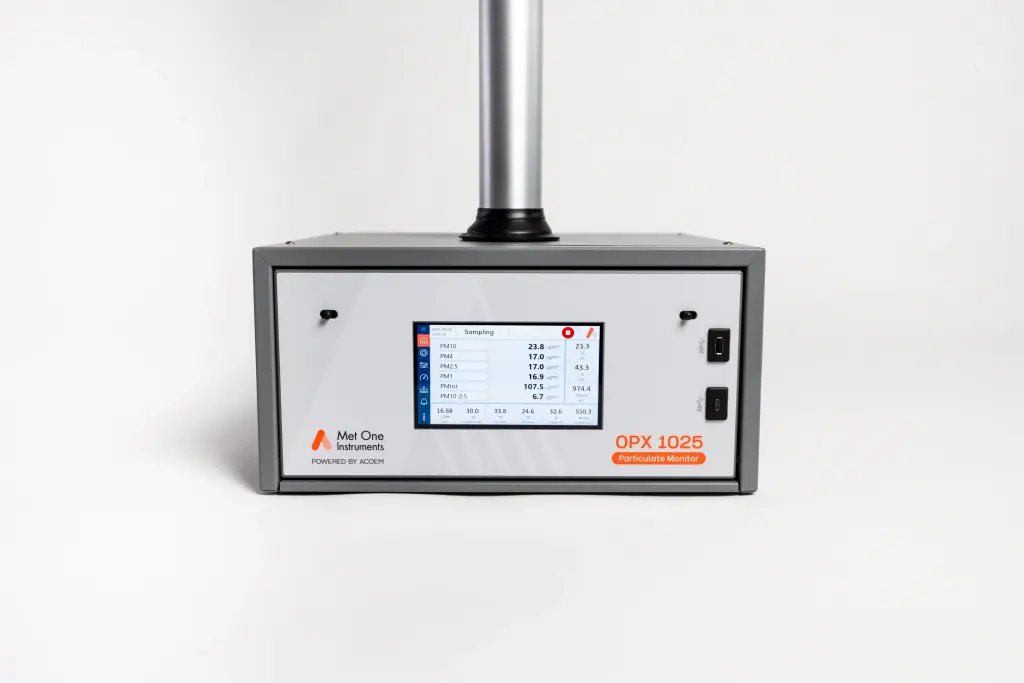

Acoem Met One OPX 1025 Optical PM Mass Monitor
New!

Acoem Met One OPX 1025 Optical PM Mass Monitor

A New Standard in Continuous Particulate Matter Monitoring

AAVOS International is proud to offer the Acoem Met One OPX 1025, an advanced Optical PM Mass Monitor designed for superior accuracy and reliability. This instrument provides continuous, real-time particulate matter measurements, making it an essential tool for ambient air quality networks and industrial compliance in the Benelux.

The OPX 1025 moves beyond traditional methods by using an advanced optical particle spectrometer with a polychromatic light source. This technology, combined with the proprietary RealPM™ Dynamic Mass Conversion Algorithm, delivers precise mass concentration data by analyzing particle size and count and automatically accounting for environmental factors.

The Smart Solution for Accurate PM Data

The OPX 1025 is engineered for performance and low maintenance, ensuring you get reliable data with a low cost of ownership.

Key Features & Benefits

  • Advanced Optical Spectrometer: Utilises a polychromatic light source with 4,096 raw size bins, consolidated into 100 bins for highly accurate mass conversion.
  • Proprietary RealPM™ Algorithm: A unique size/density algorithm designed for high accuracy across varying environmental conditions.
  • Comprehensive Real-Time Data: Simultaneously measures and reports $PM_1$, $PM_{2.5}$, $PM_4$, $PM_{10}$, and the coarse fraction ($PM_{10-2.5}$).
  • Controlled Sampling System: Ambient air is drawn at a controlled 16.67 LPM flow rate. A built-in Smart Heater conditions the sample (e.g., to 35% RH or lower) for data integrity, even in damp conditions.
  • High Sensitivity: Offers greater sensitivity than traditional continuous PM mass monitors, with a lower detectable limit of $<0.1 \mu g/m^3$.
  • Low Maintenance Design: Features sheath-flow optics protection, which significantly reduces the need for cleaning and field-service intervals, maximising uptime.
  • User-Friendly Operation: A large graphic touchscreen with an intuitive interface and advanced diagnostics simplifies operation and troubleshooting.
  • Advanced Communications: Fully capable of remote operation, with cloud-based data access and options for integrating meteorological and other sensors.

Your Local Partner for Advanced Monitoring

As the official Benelux partner for Acoem, AAVOS International provides complete, turnkey solutions. We offer expert consultation, system integration, installation, commissioning, and full-service support for the OPX 1025.

Contact us today to request a technical consultation or an official quote.

Applications

The OPX 1025 is the ideal solution for a wide range of applications, including:

  • Ambient air quality monitoring ($PM_{2.5}$, $PM_{10}$)
  • Industrial and emissions monitoring
  • Fence-line and community monitoring
  • Construction and mining site dust control
  • Roadside and traffic pollution studies
  • Research and environmental studies
  • Mobile or temporary monitoring campaigns
  • Indoor air quality assessments

Technical Specifications

Specification

Value

Measurement Principle

Broadband spectroscopy, $85^{\circ}-95^{\circ}$ light scattering with polychromatic LED

PM Mass Measurements

$PM_{10}$, $PM_{2.5}$, $PM_{10-2.5}$, as well as $PM_4$, $PM_1$ and TSP (with optional inlet)

Particle Size Resolution

0.18 - 24µm range over 100 sizing channels

PM Mass Range

$0.0 - 10,000+ \mu g/m^3$

Lower Detectable Limit

$<0.1 \mu g/m^3$

Flow Rate

16.67 lpm

Flow Accuracy

$\pm1\%$ (Typically within $\pm0.5\%)$

Sample RH Control

24VDC heater controlled to 35% RH or lower

User Interface

Large graphic touchscreen display and remote interface

Data Storage

1 year of internal data storage

Warranty

2-year standard instrument warranty

Sensor LED Warranty

10-year manufacturer's warranty (parts only, field replaceable)

Certifications (Pending)

US EPA $PM_{10}$ FEM, US EPA Class III $PM_{2.5}$ FEM, US EPA Class III $PM_{10-2.5}$ FEM
0.00 € 0.00 €
0.00 €

  • Measured Components
  • Brand
  • Measurement Principle
  • Applications
  • Measurement Phase
  • Certifications
​
Measured Components UFP Ultrafine Particles, PM – Particulate Matter, PM1 – Particulate Matter ≤ 1 µm, PM2.5 – Particulate Matter ≤ 2.5 µm, PM4 – Particulate Matter ≤ 4 µm, PM10 – Particulate Matter ≤ 10 µm, TSP – Total Suspended Particles
Brand ACOEM, Met One
Applications CEMS (Continuous Emissions Monitoring Systems), Environmental Protection, Industrial Emissions, Ambient air quality, Indoor Air Quality
Measurement Phase Continuous, Autonomous / Automated
Certifications US EPA PM10 Federal Equivalent Method, US EPA Class III PM2.5 Federal Equivalent Method, US EPA Class III PM10-2.5 Federal Equivalent Method
Measurement Principle Broadband spectroscopy
Contact Us
Measurement Principle: Broadband spectroscopy
Documents
Acoem_OPX_1025_Datasheet.pdf
