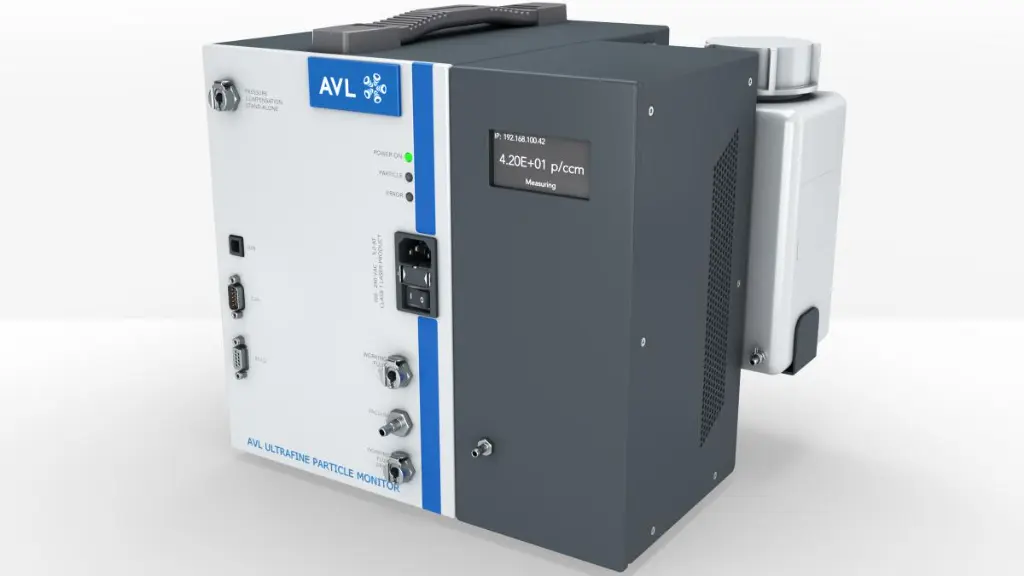

AVL UFPM – Advanced Ultrafine Particle Monitor for Ambient Air Quality

AVL UFPM – Advanced Ultrafine Particle Monitor for Ambient Air Quality

High-precision, continuous monitoring of sub-micron particles. The AVL UFPM provides accurate Particle Number (PN) concentrations, essential for environmental research, urban air quality networks, and compliance with emerging VDI and ISO standards.

Precision in Sub-Micron Particle Monitoring

As air quality regulations increasingly shift focus from mass-based (PM10/PM2.5) to number-based (PN) measurements, the AVL UFPM (Ultrafine Particle Monitor) stands at the forefront of aerosol technology. Developed by AVL and supported by the technical expertise of AAVOS International, this system is designed for high-sensitivity detection of ultrafine particles in ambient air.

Whether you are monitoring traffic emissions, industrial plumes, or urban background levels, the UFPM provides robust, real-time data with minimal maintenance requirements.

Key Features & Technical Advantages

  • Advanced Detection Technology: Utilizes high-precision condensation particle counting (CPC) or diffusion charging (DC) principles (depending on specific configuration) to detect particles down to the nanometer scale.

  • Continuous 24/7 Operation: Engineered for long-term deployment in stationary monitoring stations or mobile laboratories.

  • Compliance Ready: Designed to meet the stringent requirements of European monitoring networks and atmospheric research protocols.

  • Ease of Integration: Seamlessly integrates into existing data acquisition systems via standard industrial communication protocols.

  • Low Operational Costs: Optimized for extended service intervals, reducing the Total Cost of Ownership (TCO).

Applications

  • Urban Air Quality Networks: Measuring the impact of traffic and combustion on city air.

  • Industrial Perimeter Monitoring: Tracking ultrafine emissions from manufacturing and power plants.

  • Atmospheric Research: Providing high-resolution data for climate and health impact studies.

  • Workplace Exposure: Monitoring air quality in high-tech manufacturing and cleanroom environments.

Technical Specifications

FeatureSpecification
Measurement ParameterParticle Number Concentration (PN)
Particle Size RangeStarting from 10 nm (Model dependent)
Concentration RangeUp to 10⁶ particles/cm³
Response Time< 1 second (T90)
Flow RateRegulated internal sample flow
Data InterfaceEthernet, RS232, Analog outputs
Operating ConditionsDesigned for controlled ambient environments

Why Choose AAVOS International?

At AAVOS, we don’t just sell instruments; we provide turnkey monitoring solutions. When you choose the AVL UFPM, you benefit from:

  • Expert Consultation: We help you select the right configuration for your specific application.

  • Local Support: Technical service and calibration performed by our Belgian-based engineering team.

  • Seamless Installation: We ensure the system is correctly integrated into your existing infrastructure.

0.00 € 0.00 €
1.00 €

  • Brand
  • Measured Components
  • Measurement Principle
  • Applications
  • Measurement Phase
  • Certifications
Measured Components UFP Ultrafine Particles, PN – Particulate Number
Applications Ambient air quality, Indoor Air Quality
Measurement Phase Continuous, Autonomous / Automated
Certifications Actris, ISO 27891 Traceability, EU Air Quality Directive (2024/2881), VDI 4300-11, EN16976 (measuring the particle number concentration of atmospheric aerosol)
Brand AVL
Measurement Principle CPC (Condensation Particle Counting)
