HORIBA PG-300 Series: Portable Multi-Gas Analyzer for Emissions & Process Monitoring
PG-300 Series Portable Gas Analyzer by HORIBA
Discover the PG-300 Series, a versatile and reliable portable gas analyzer designed for precise multi-gas measurements in environmental monitoring, stack emissions testing, and process gas control. Ideal for field and lab use, this compact analyzer supports up to five gas components simultaneously, including NOx, SO2, CO, CO2, O2, CH4, and N2O for greenhouse gas (GHG) analysis.
Whether you're conducting emissions monitoring for boilers, gas turbines, or incinerators, evaluating catalyst performance, or researching biomass combustion and fuel cells, the PG-300 Series delivers high-accuracy results comparable to large-scale stationary analyzers.
Key Features of the PG-300 Portable Gas Analyzer
- Compact and Lightweight Design: 20% lighter than previous models, with shock-resistant side guards and optional IP42 ingress protection for rugged field applications.
- Multi-Gas Measurement Capability: Measures up to five components at once, including standard gases and GHGs like methane (CH4) and nitrous oxide (N2O).
- Advanced Measurement Principles: Utilizes cross-modulation chemiluminescence for NOx, cross-modulation NDIR for SO2, CO, and CH4, NDIR for CO2, and selectable O2 methods (galvanic, zirconia, or paramagnetic).
- User-Friendly Interface: Color LCD touch screen with trend graphs, screen capture, and built-in operation guide for easy operation.
- Quick Warm-Up Time: Ready in just 30 minutes—half the time of prior models—with an automatic timer for scheduled startups.
- High Efficiency and Stability: 95% NOx converter efficiency, reduced span drift via cross-modulation, and up to 35% lower power consumption.
- Data Management: SD memory card slot for storage, Ethernet connectivity for real-time data sharing, and multi-language support (English, Chinese, Korean, German, French, Russian, Japanese).
- Certifications: TÜV (EU), China, Korea, Japan, MCERTS (UK), GOST (Russia) for global compliance.
- Versatile Applications: Suitable as a backup for stack gas analyzers like HORIBA's ENDA series, with optional preconditioning for long-term monitoring.
The PG-300 Series excels in demanding environments, offering robustness against light rain (with IP42 option) and seamless integration into networks for data acquisition.
The PG-300 Series from HORIBA represents a pinnacle in portable gas analyzer technology, engineered for professionals seeking accurate, multi-component gas measurements in diverse settings. This analyzer's compact form factor and lightweight construction—reduced by 20% from earlier iterations—make it an essential tool for on-site emissions testing, GHG monitoring, and process optimization.
Overview and Design Advantages
The PG-300 is tailored for simultaneous measurement of up to five gas components, delivering laboratory-grade precision in portable format. Its proven performance spans field investigations of environmental pollutants, stack emission evaluations, catalyst efficiency testing, and real-time process gas stream control. For enhanced durability, optional shock-resistant side guards and IP42 ingress protection safeguard against dust and water droplets, enabling reliable operation in challenging outdoor conditions like light rain (with necessary wiping for accuracy).
Key to its robustness is the IP42 rating, which protects against solid objects over 1mm and vertically falling water at up to 15 degrees tilt. This makes the PG-300 ideal for mobile applications where traditional analyzers fall short.
Measurement Principles and Technology
- NOx Detection**: Employs cross-modulation chemiluminescence detection (CLD) for high selectivity and accuracy.
- SO2, CO, and CH4 Detection**: Uses cross-modulation non-dispersive infrared absorption (NDIR) to minimize interference and ensure stable readings.
- CO2 Detection**: Standard NDIR method for reliable volumetric measurements.
- O2 Detection**: Flexible options including galvanic, zirconia, or paramagnetic methods to suit specific needs.
The cross-modulation technique alternates sample and reference gases, keeping the cell clean and reducing span drift for long-term stability. Unlike chopper methods, it eliminates zero drift and optical adjustments, enhancing reliability.
Models with CH4 capabilities are particularly valuable for biomass combustion analysis, fuel cell research, and GHG emission tracking, supporting sustainability efforts.
Operational Efficiency

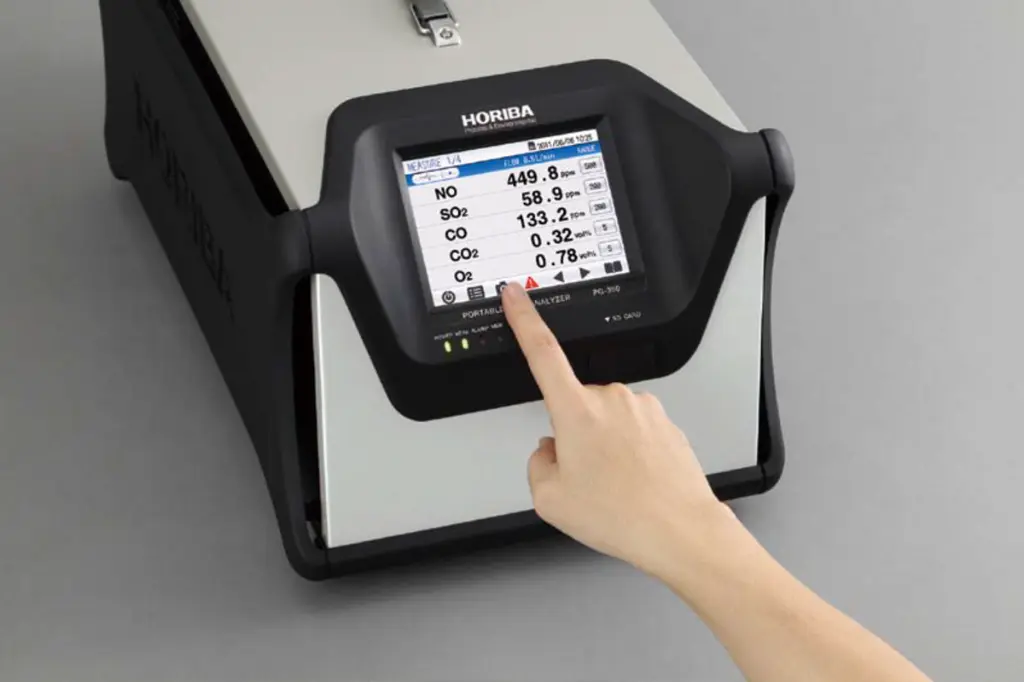

Featuring a vibrant color LCD touch screen, the PG-300 offers intuitive navigation with features like screen capture, color trend graphs, and an integrated operation guide. Warm-up is expedited to 30 minutes, with a timer for automated pre-heating, saving valuable time in the field.
The analyzer boasts a 95% efficient NOx converter for precise measurements and an energy-efficient design that cuts power use by up to 35%. Data handling is streamlined via an SD memory card slot for storage and Ethernet for network integration, allowing real-time monitoring and CSV file recording through dedicated software.
Software Capabilities
The PG-350 software, compatible with Windows (Vista, XP, 7+), provides a user-friendly interface for data acquisition, graphing, and control of NO/NOx valves. Users can switch modes manually or automatically, view all component values, and customize graph ranges from 3 to 480 minutes. Install on multiple computers with a license based on the PG's MAC address, and run instances for simultaneous multi-unit operation.
Global Compliance and Versatility
Supporting multiple languages (English, Chinese, Korean, German, French, Russian, Japanese) and certified by TÜV (EU), China, Korea, Japan, MCERTS (UK), and GOST (Russia), the PG-300 meets international standards.
It serves as an effective backup or cross-verification tool for stationary systems like the ENDA-5000 Stack Gas Analysis System, enabling continuous measurements up to 5 days (depending on conditions) via branched sampling lines.
Industry Applications
- Thermal Power Generation: Monitor emissions from boilers and turbines.
- Waste to Energy and Biomass Power: Analyze combustion gases for efficiency.
- Iron and Steel Production: Control process gases in manufacturing.
- Oil Refinery and Petrochemicals: Ensure compliance in refining operations.
- Environmental Impact Assessment: Track pollutants and GHGs.
- Specific Solutions: Such as SO2 monitoring for flue gas desulfurization.
Model Configurations
| NOx | SO₂ | CO | CO₂ | O₂ | CH₄ | N₂O | Standard Models |
| ● | ● | PG-320 | |||||
| ● | ● | PG-325 | |||||
| ● | ● | ● | PG-330 | ||||
| ● | ● | ● | PG-335 | ||||
| ● | ● | ● | PG-337 | ||||
| ● | ● | ● | ● | PG-340 | |||
| ● | ● | ● | ● | ● | PG-350 |
| CH₄ Models | NOx | SO₂ | CO | CO₂ | O₂ | CH₄ | N₂O |
| PG-324 | ● | ● | |||||
| PG-344 | ● | ● | ● | ● | |||
| PG-344 (Carbon Neutral) | ● | ● | ● | ● |
Measurement Ranges
**Standard Models:**
- NOx: 0-25/50/100/250/500/1000/2500 ppm
- N₂O: C range: 0-100/200/500/1000 ppm; D range: 0-500/1000/2000/5000 ppm
- SO₂: 0-200/500/1000/3000 ppm
- CO: 0-200/500/1000/2000/5000 ppm
- CO₂: 0-10/20/30 vol%
- O₂: 0-5/10/25 vol% (Contact for paramagnetic details)
**CH₄ Models:**
- CH₄: 0-2000/5000 ppm
- CO: 0-2000/5000 ppm
- CO₂: 0-5/10/20 vol%
- O₂: 0-5/10/25 vol% (Contact for paramagnetic details)
**PG-344 Carbon Neutral:**
- CH₄: C range: 0-200/500/1000/2000 ppm; D range: 0-500/1000/2000/5000 ppm
- N₂O: C range: 0-100/200/500/1000 ppm; D range: 0-500/1000/2000/5000 ppm
- CO₂: 0-5/10/20 vol%
- O₂: 0-5/10/25 vol% (Zirconia or Galvanic); 0-10/25 vol% (Paramagnetic Dumbbell)
Performance Specifications
| Parameter | Standard Model | CH₄ Model |
| Repeatability | ±0.5% of full scale (NOx: ≥100ppm range / CO: ≥1000ppm range); ±1.0% otherwise | ±1.0% of full scale |
| Linearity | ±2.0% of full scale | ±2.0% of full scale |
| Drift | ±1.0% of full scale / day (SO₂: ±2.0% / day) | ±1.0% of full scale / day (SO₂: ±2.0% / day) |
| Response Time (Td+T90) | Analyzers except SO₂: ≤45 sec; SO₂: ≤180 sec | Same as standard |
| Sample Gas Flow Rate | Approx. 0.5 L/min | Same |
| Display | 3 or 4 digit, range, flow rate, etc. | Same |
| Output | DC 4-20 mA or 0-1 V (non-insulated) [optional]; Ethernet | Same |
| Warm-Up Time | 30 min ±2.0% / 2 hours | Same |
| Data Saving | SD/SDHC memory card | Same |
| Ambient Temperature | 0°C-40°C (32°F-104°F) | Same |
| Ambient Humidity | Max 80% RH up to 31°C, decreasing to 50% at 40°C; N₂O <1ppm, CH₄ <2ppm limit | Same |
| Power | AC 100-240V ±10% (max 250V), 50/60 Hz | Same |
| Power Consumption | Approx. 160VA steady, max 220VA | Same |
| Dimensions (with guards) | 300(W) x 520(D) x 260(H) mm (11.8" x 20.5" x 10.2") | Same |
| Dimensions (without guards) | 260(W) x 520(D) x 260(H) mm (10.2" x 20.5" x 10.2") | Same |
| Weight | Approx. 13-15 kg (29-33 lb) | Same |
| Environmental Rating | IP42 (optional) | Same |
| Sample Gas Condition | Ambient temp, below saturation moisture, dust ≤0.1g/Nm³, ±0.98 kPa pressure, no corrosive/reactive gases | Same |
**Safety Notes**: Handle toxic or flammable gases with care—ensure ventilation, gas detectors, and no ignition sources. The PG-300 is not explosion-proof; avoid hazardous locations or explosive atmospheres.
For optional preconditioning utilities like electronic coolers and drain separators, contact us to customize for long-term applications.
| Measured Components | CH₄ – Methane, CO – Carbon Monoxide, CO₂ – Carbon Dioxide, NO – Nitric oxide, NO₂ – Nitrogen dioxide, SO₂ – Sulfur dioxide, NOx – Nitrogen oxides, O₂ - Oxygen |
| Measuring Principle | Chemiluminescence, NDIR, Paramagnetic |
| Applications | Ammonia Emissions, CEMS (Continuous Emissions Monitoring Systems), Environmental Protection, Industrial Emissions |
| Measurement Type | Periodic, Portable, Autonomous / Automated, Manual / Spot Measurement |
| Certifications | MCERTS (Monitoring Certification Scheme), EN 15267-1/2/3/4, EN 14181 |
| Brand | Horiba |
